Ball Valves and Bulkheads

$ 8.79

1/4in MPT x 3/8in barb gas ball valve with one-way check valve and 1/4 turn handle. For 1/4in NPT gas regulator and air distributor fittings. Ideal for CO2, NO₂ and O₂. Chrome-plated brass.
Overall Length (Not Including Handle): 2-5/16in (59mm)

Thread Size (Nominal): 1/4in MPT

Thread Diameter (Actual): 1/2in (13mm)

Barb Diameter: 3/8in (10mm)

Material: Chrome-plated brass

Sold Out $ 24.99

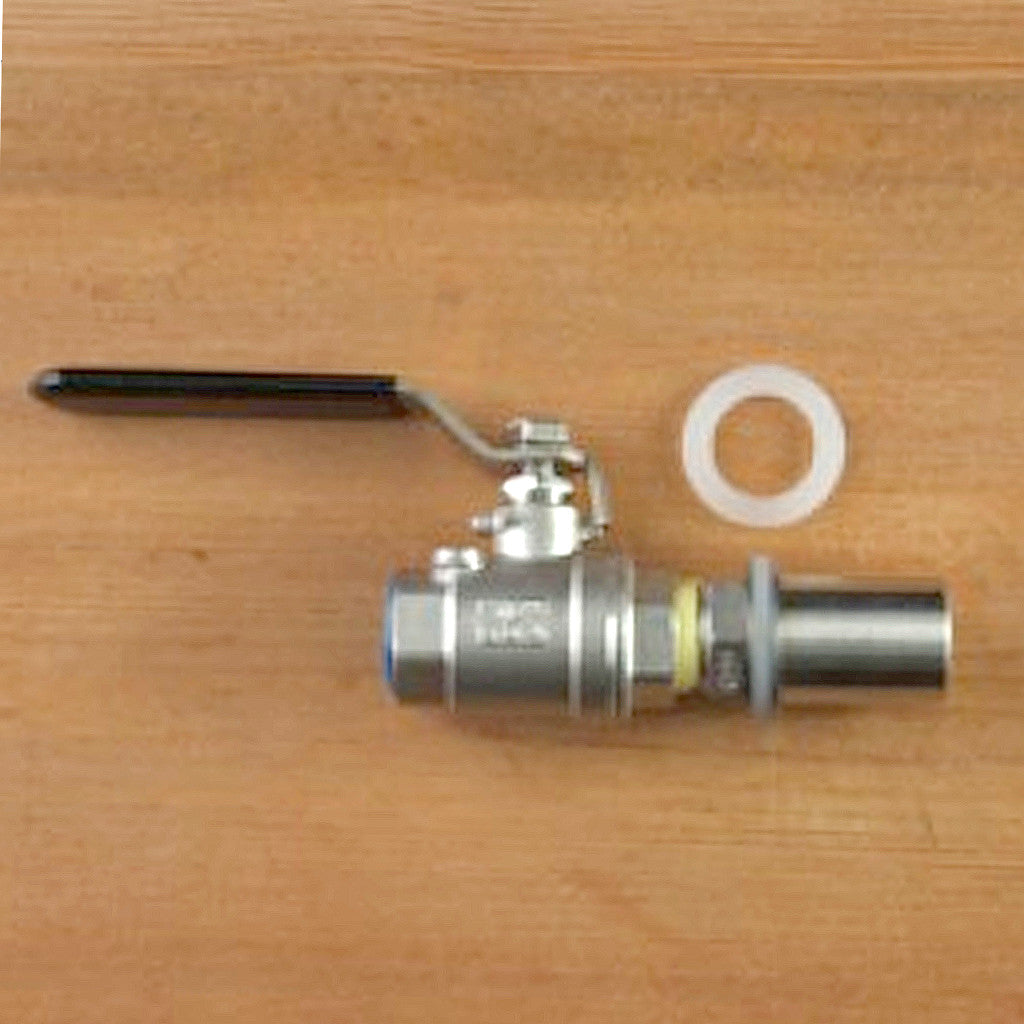

This valve performs well and is built to last. Made of 304 Stainless Steel with heat-resistant components, it is durable and can be easily dismantled for cleaning. The full-bore 1/2in NPT ball port provides excellent flow-through with almost no pressure loss, and the weldless bulkhead includes the o-ring, lock nut and washer to install the valve in thin wall containers. The female adapter on the bulkhead allows for additional components with 1/2in male NPT fittings to be easily attached to the valve inside the container. Just drill a hole 13/16in to 7/8in wide, mount the valve, and tighten the nut. Teflon tape is required on all threaded connections (available separately).
- 1/2in NPT ball valve
- Weldless bulkhead
- Lock Nut
- Teflon O-ring
- Washer
- Shank
- Female coupler

$ 15.99

Overall Length:	4.5in (11.4cm)
Overall Width:	1.25in (3.2cm)
Material:	18/8 Stainless Steel (304 Grade), Silicone, Teflon
Thread:	1/2in NPT (National Pipe Thread); 0.84in (21.3mm); 14 Threads Per Inch (1/2 FPT x 1/2 FPT)

Material:	316 Stainless Steel, Rubber, Teflon
Overall Length (Not Including Handle):	2.25in (5.7cm)
Overall Thickness (Not Including Handle):	1.25in (3.2cm)
Overall Height (Not Including Handle):	2.13in (5.4cm)
Handle Length:	4.5in (11.4cm)
Interior Thread:	1/2in FPT (Female Pipe Thread); 0.84in (21.3mm); 14 Threads Per Inch

Overall Length (Not Including Handle):	2-5/16in (59mm)
Thread Size (Nominal):	1/4in MPT
Thread Diameter (Actual):	1/2in (13mm)
Barb Diameter:	3/8in (10mm)
Material:	Chrome-plated brass
